Power Distribution Units – Basic PDU

Technical Features

>> Solid and sturdy metal frame
Can accommodate all types of sockets used in different countries. In Italy available Schuko, Schuko bipasso (Universal), C13, C19. Other models on request.

>> Horizontal or vertical installation
Available for mounting at 19 “height 1U or 2U, and vertical. The perforated fins for fixing to the uprights are removable and can be positioned on the 4 sides of the heads of the PDUs to orient the mounting in the most suitable position. Number of different sockets depending on the specific requirement. Optionally, you can mount a power button with LED, ON / OFF light, magnetothermic.

>> Power, power supply
Input Voltage 110VAC, 220VAC and 380VAC; Output voltage 110VAC and 220VAC. Maximum load current from 10 to 96A, maximum power from 2.500W to 24.000W.

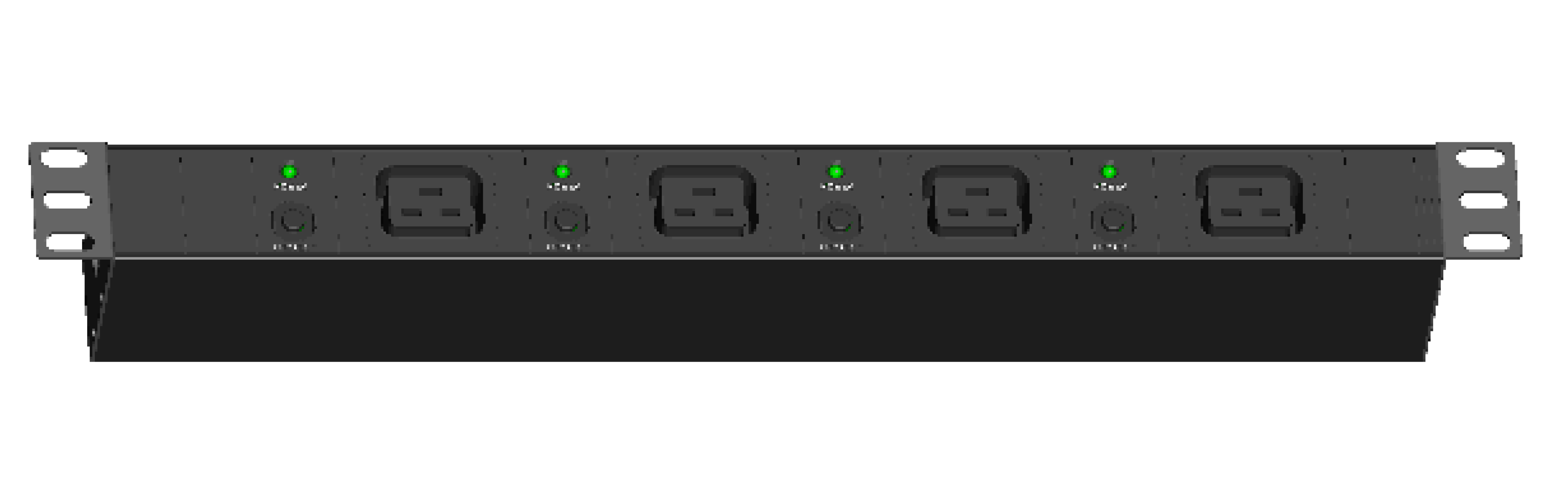

AUE – 2220


BASIC PDU for 19” or vertical mounting. 4 C19 sockets, each one with its network presence LED. IEC60309 outlet (32A 2P+E), 3M cable lenght.

AUE – 2230


BASIC PDU for 19” or vertical mounting. 12 C13 sockets, Divided in two groups of 6 sockets. Each group with its network presence LED. DIN49441 outlet (16A), 3M cable lenght.

AUE – 2220


BASIC Pdu for 19 “or vertical mounting. Height 1.6U, depth 1U. Available with sockets C13, C19, Schuko, Universal (Schuko bipasso) and other sockets on request. In the vertical configuration, the maximum PDU height is 2200 mm and the maximum number of C13 outlets is 42. The PDUs of the AUE2220 series can mount a network presence LED, a button switch with LED, ON / OFF light switch and A 16 A. magnetotherm switch.

AUE – 2230


BASIC PDU for 19 “or vertical mounting. Height 1 U, depth 68 mm. Available with C13 plugs (with lock springs), C19, Schuko, Universal (Schuko bipasso) and other sockets on request. In the vertical configuration, the maximum PDU height is 2200 mm and the maximum number of C13 outlets is 42. The AUE2230 Series PDUs can mount a network presence LED, a button switch with LEDs, ON / OFF light switch and A 16 A. magnetotherm switch.

AUE – 2240


BASIC PDU for 19 “or vertical mounting. Height 1.5 U, depth 38 mm. Available with C13 plugs (with lock springs), C19, Schuko, Universal (Schuko bipasso) and other sockets on request. In the vertical configuration, the maximum PDU height is 2200 mm and the maximum number of C13 outlets is 42. The AUE2240 Series PDUs can mount a network presence LED, a LED push button switch, ON / OFF light switch, and A 16 A. magnetotherm switch.

AUE – 2250Y2


BASIC PDU for 19 “or vertical mounting. Height 1 U, depth 1 U. Available with sockets C13, C19, Schuko, Universal (Schuko bipasso) and other sockets on request. In the vertical configuration, the maximum PDU height is 1800 mm and the maximum number of C13 outlets is 42. The AUE2250 Series PDUs can mount a network presence LED, a button switch with LED, ON / OFF light switch and A 16 A. magnetotherm switch.

AUE – 2260


BASIC PDU for 19 “mounting consisting of the connection of two UU PDUs. Height 2 U, depth 1 U. Available with sockets C13, C19, Schuko, Universal (Schuko bipasso) and other sockets on request. The AUE2260 Series PDUs can mount a network presence LED, a pushbutton switch with LEDs, ON / OFF light switch, and a 16A magnetotherm switch.

AUE – 2280


New PDU for 19 “mounting. It can mount one or two inputs for three-phase power supply and a variable number of outputs of the industrial type at 32 A or 16 A. Height 2.5U, depth 111 mm.

AUE – 2290


BASIC PDU for 19 “or vertical mounting. Height 1 U, depth 116 mm. Available with sockets C13, C19, Schuko, Universal (Schuko bipasso) and other sockets on request. Possibility to take on both front and rear. The AUE2290 Series PDUs can mount a network presence LED, a LED button switch, an ON / OFF light switch, a digital ammeter.
